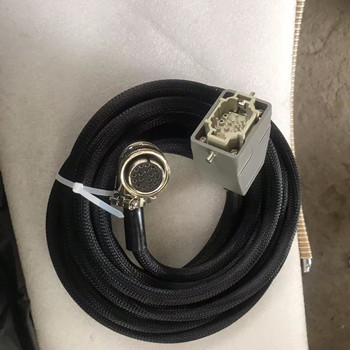

產品描述

料位儀的接線方法： 1. 阻旋式：要看清電壓等級。內部有六個端子，兩根電源線，一根接地線，三根信號線（公共線、L線、H線）。2.電容式料位儀：有四個端子需要接線，兩根電源線，兩根信號線，其中一根電源線可以和信號線的L線或H線共接一根線的。（上料位接公共線和H線；下料位接公共線和L線）3. 電容式：要看清電壓等級，我廠發送罐一般都用24V的。內部共有4個端子，接線圖見蓋子內側的說明。端子1為24V電源正，端子2為24V電源負，端子3端子4是一組無源常開點。根據圖紙，其中一根電源線可以和端子3或端子4共接一根線。如果無法識別同一個罐上的上下料位，只要觀察上面標簽貼的型號，一般S1000的罐子，上料位為350MM，下料位為1600MM。4. 液料桶的料位計中浮球式、折角式只要接兩根線就可以了，桿式的要接三根線（上料位線、下料位線、公共線）

免責聲明丨 部分內容來源網絡！本文僅供交流學習 , 版權歸屬原作者，部分圖片、內容推送時未能及時與原作者取得聯系，若來源標注錯誤或侵犯到您的權益煩請告知，我們將立即刪除.

QQ郵箱：2870202745@qq.com

網易郵箱：LS13645201509@163.com

Wiring method for level gauge: 1 Resistance type: It is necessary to see the voltage level clearly. There are six terminals inside, two power lines, one grounding wire, and three signal lines (common line L-line H line). 2. Capacitive level meter: There are four terminals that need to be wired, two power lines, and two signal lines. One of the power lines can be connected to the L or H line of the signal line together. (The loading position is connected to the common line and H line; the unloading position is connected to the common line and L line) 3 Capacitive type: To see the voltage level clearly, our factory usually uses 24V for sending tanks. There are a total of 4 terminals inside, and the wiring diagram can be found in the instructions on the inside of the cover. Terminal 1 is positive for 24V power supply, terminal 2 is negative for 24V power supply, and terminal 3 and terminal 4 are a set of passive normally open points. According to the drawing, one of the power lines can be connected to terminal 3 or terminal 4 together. If it is not possible to identify the loading and unloading positions on the same can, simply observe the model labeled on it. Generally, for S1000 cans, the loading position is 350mm and the unloading position is 1600mm. 4. In the level gauge of the liquid material bucket, the float type and angle type only need to be connected to two wires, while the rod type needs to be connected to three wires (upper level wire, lower level wire, and common wire)

Disclaimer | Part of the content is sourced from the internet! This article is for communication and learning purposes only, and the copyright belongs to the original author. Some images and content were not promptly communicated to the original author. If the source labeling is incorrect or infringes on your rights, please inform us and we will immediately delete it
