產品描述

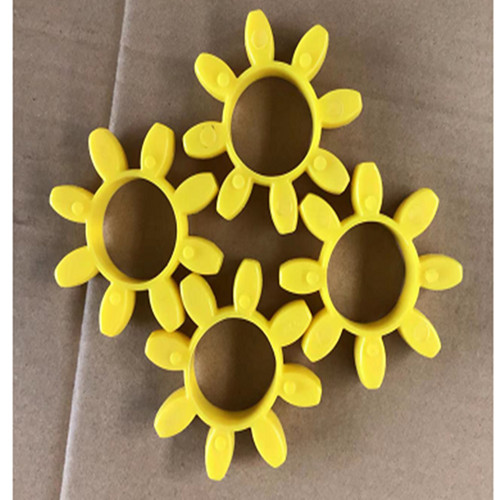

梅花墊特性:梅花墊是用聯軸器中間起到減震、絕緣、緩沖傳遞扭矩之作用。

爪型聯軸器國內通常稱為“梅花型聯軸器”。由兩個全等鋁制或鋼制的爪形軸套，在圓周方向上相互錯開半個齒距，其間裝有一個預應力的漸開線梅花形彈性體，彈性體內的預應力可保證正、反向傳動無齒隙，定位。同時，梅花型彈性體可以吸收傳動中產生的振動。爪型聯軸器中的彈性體可以減震，同時這種扭向剛性聯軸器保證的定位。

免責聲明丨 部分內容來源網絡！本文僅供交流學習 , 版權歸屬原作者，部分圖片、內容推送時未能及時與原作者取得聯系，若來源標注錯誤或侵犯到您的權益煩請告知，我們將立即刪除.

Characteristics of quincunx cushion: quincunx cushion is used in the middle of the coupling to reduce vibration, insulate, buffer and transmit torque.

Jaw coupling is commonly called "quincunx coupling" in China. Two claw shaped shaft sleeves made of full grade aluminum or steel are staggered for half a tooth pitch in the circumferential direction, and a prestressed involute quincunx elastomer is installed between them. The prestress in the elastomer can ensure that the forward and reverse drive have no backlash and are positioned. At the same time, the quincunx elastomer can absorb the vibration generated in the transmission. The elastomer in the claw type coupling can absorb vibration, and this torsional rigid coupling ensures positioning.
